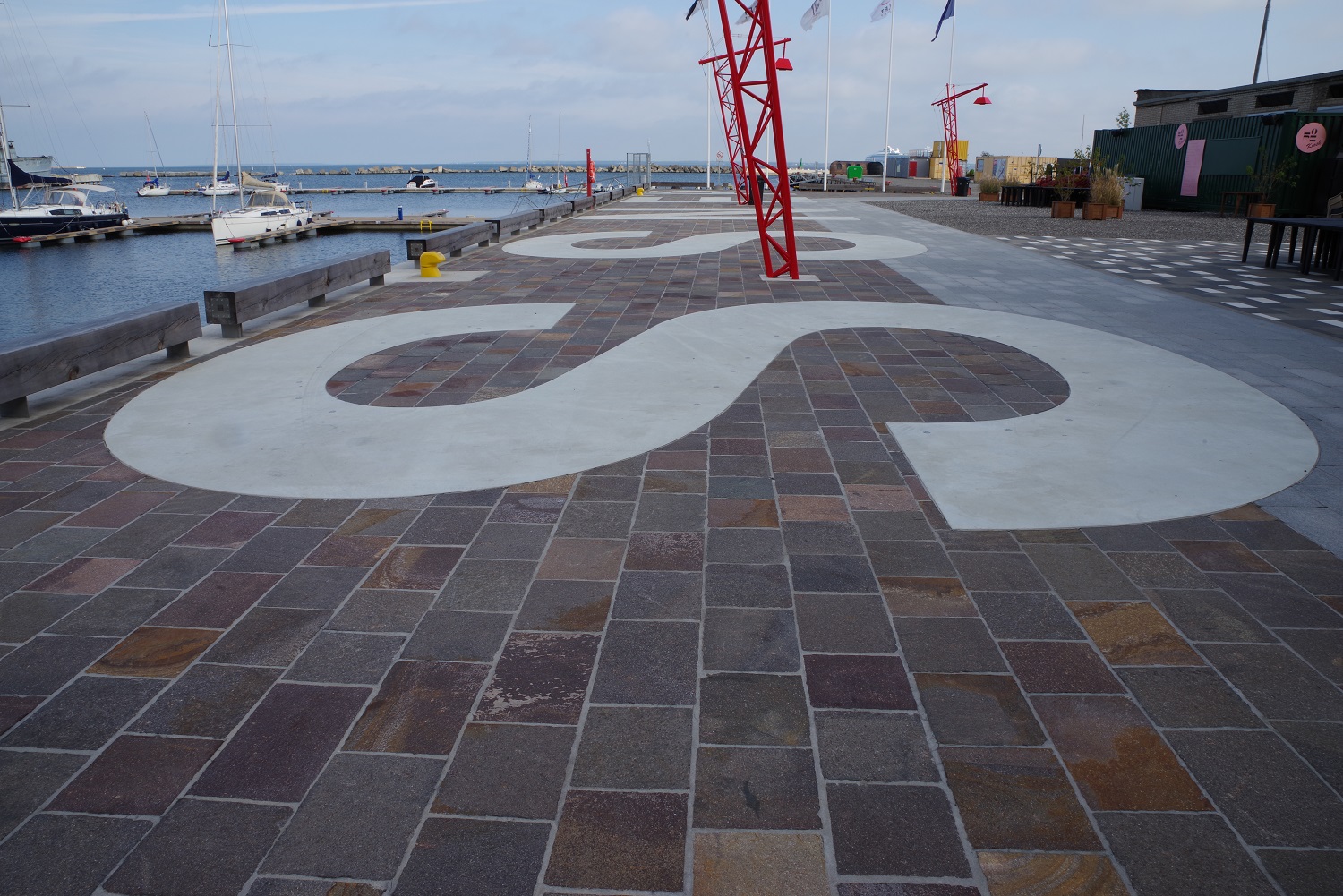

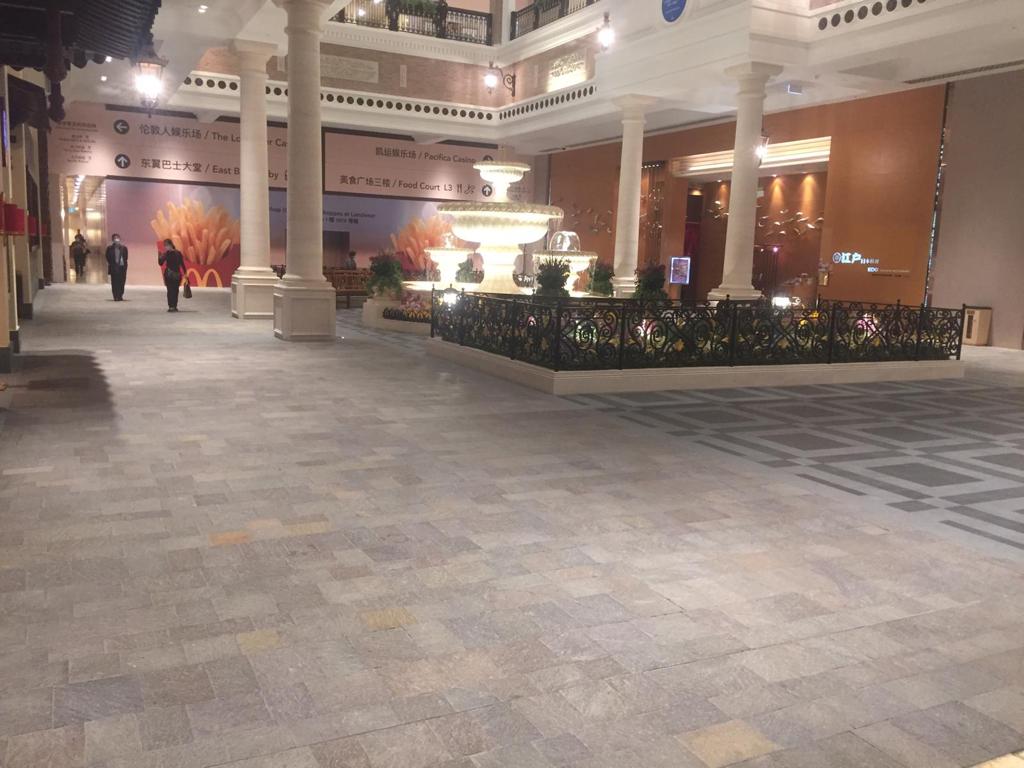

Trentino porphyry tiles are used for outdoor paving in both public and private settings. They are available with a natural finish, with split or sawn edges, and in thicknesses selected based on their intended use.

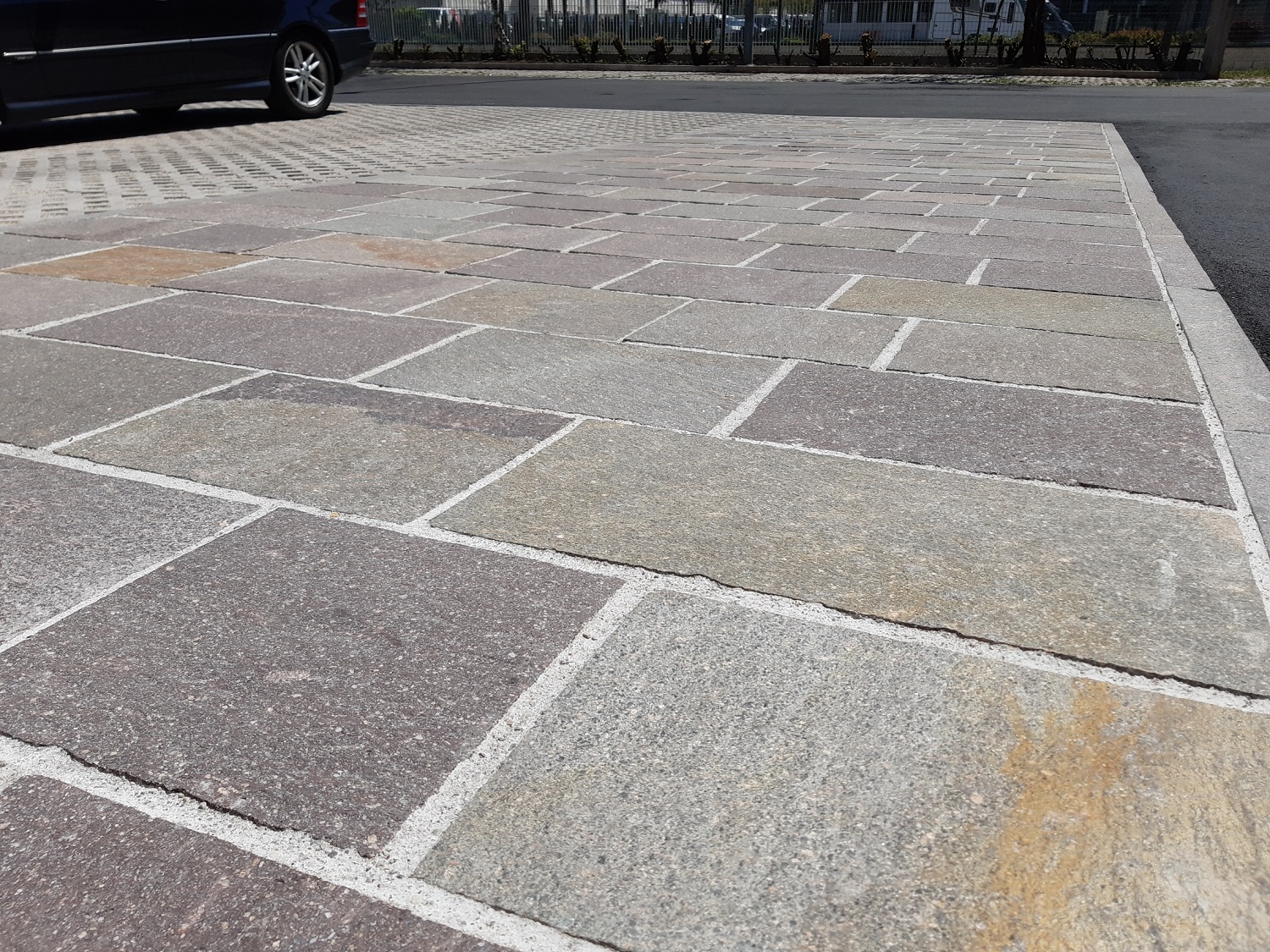

Natural flat porphyry tiles are supplied with sheared (also called split) or sawn sides. They are used for both public and private outdoor paving, using the most appropriate sizes and thicknesses, subjected to heavy traffic. Sizes can be running or fixed.

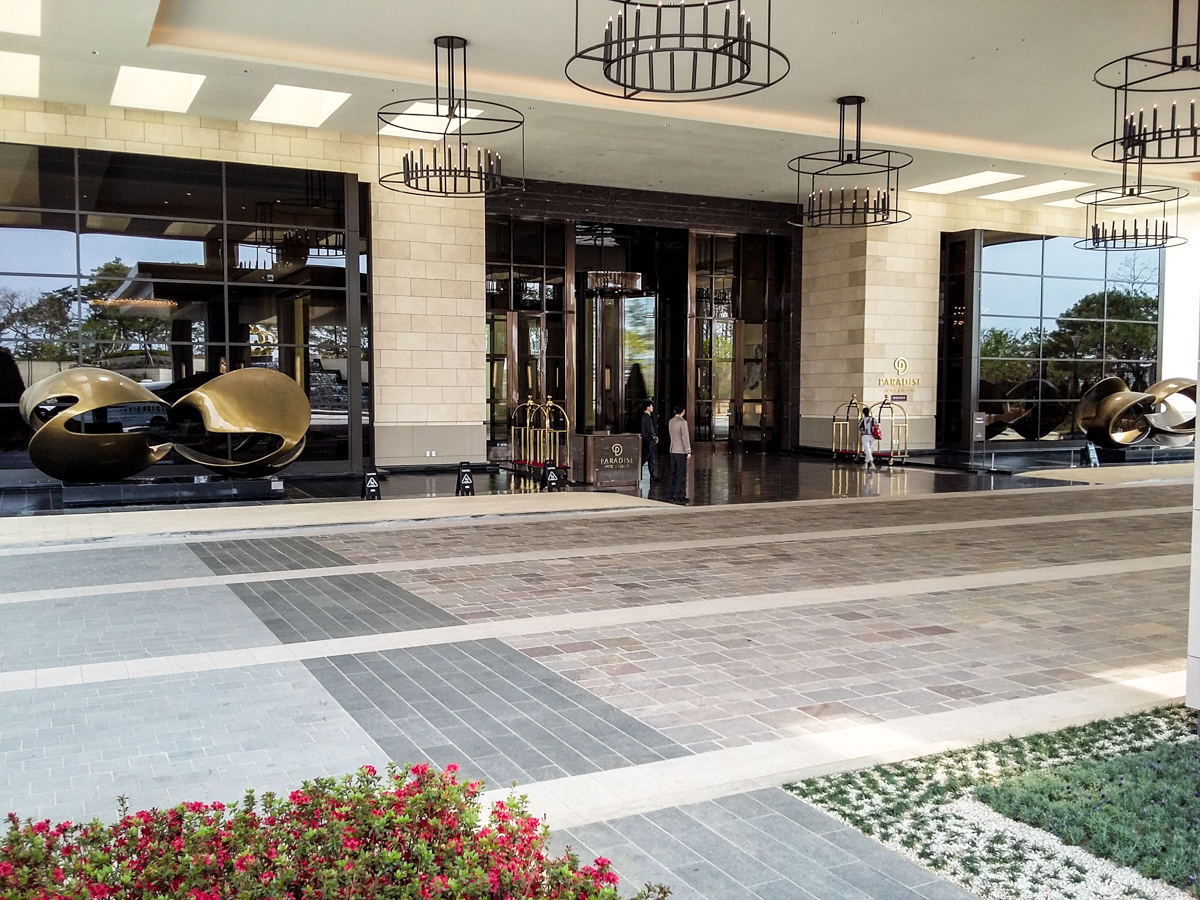

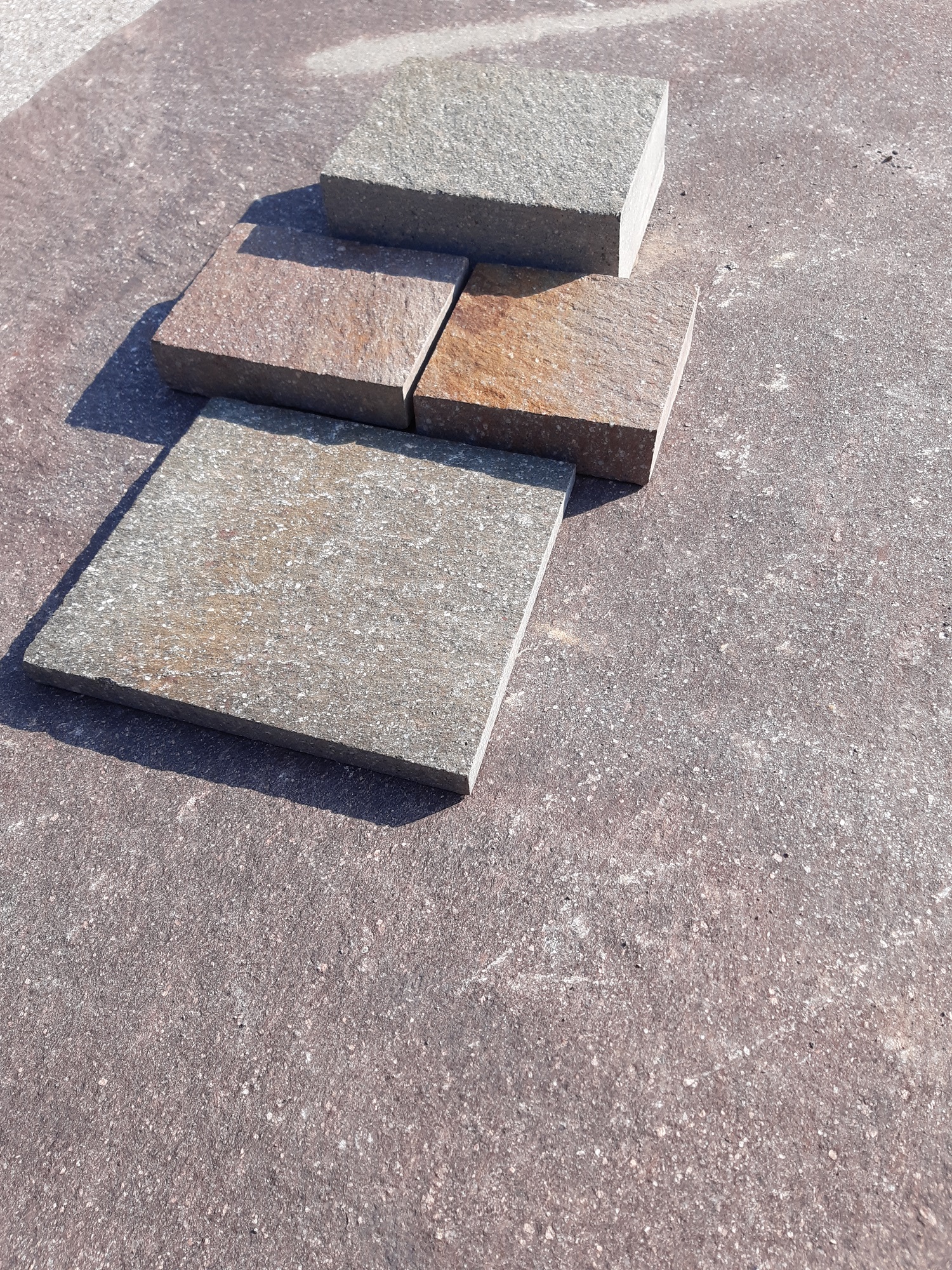

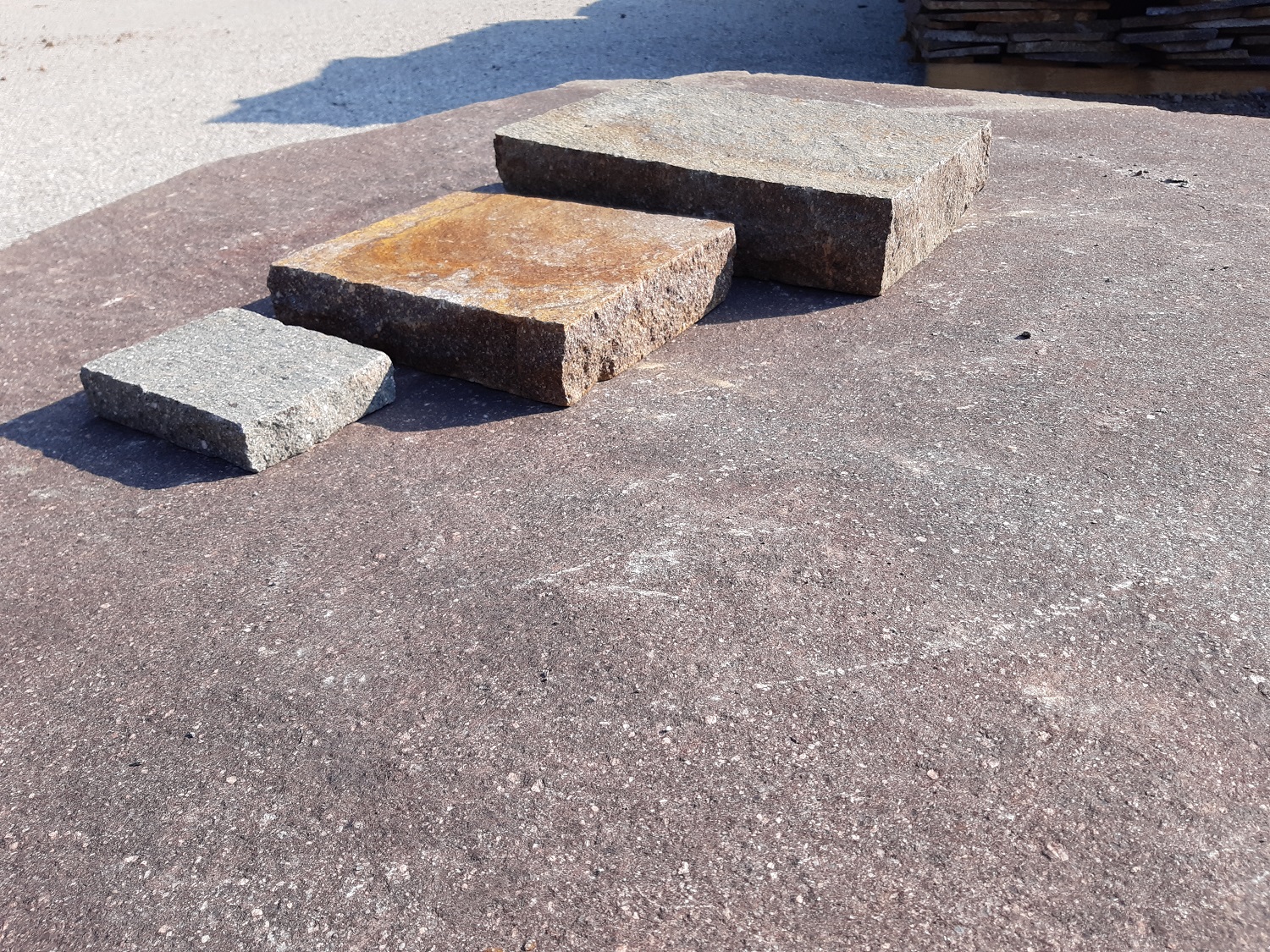

Porphyry tiles with hollow top and sheared sides can have normal thickness (varying from 2 to 5 cm.) or coarse thickness (varying from 5 to 8 cm.). The sides are split by machinery and are always parallel with right angles.

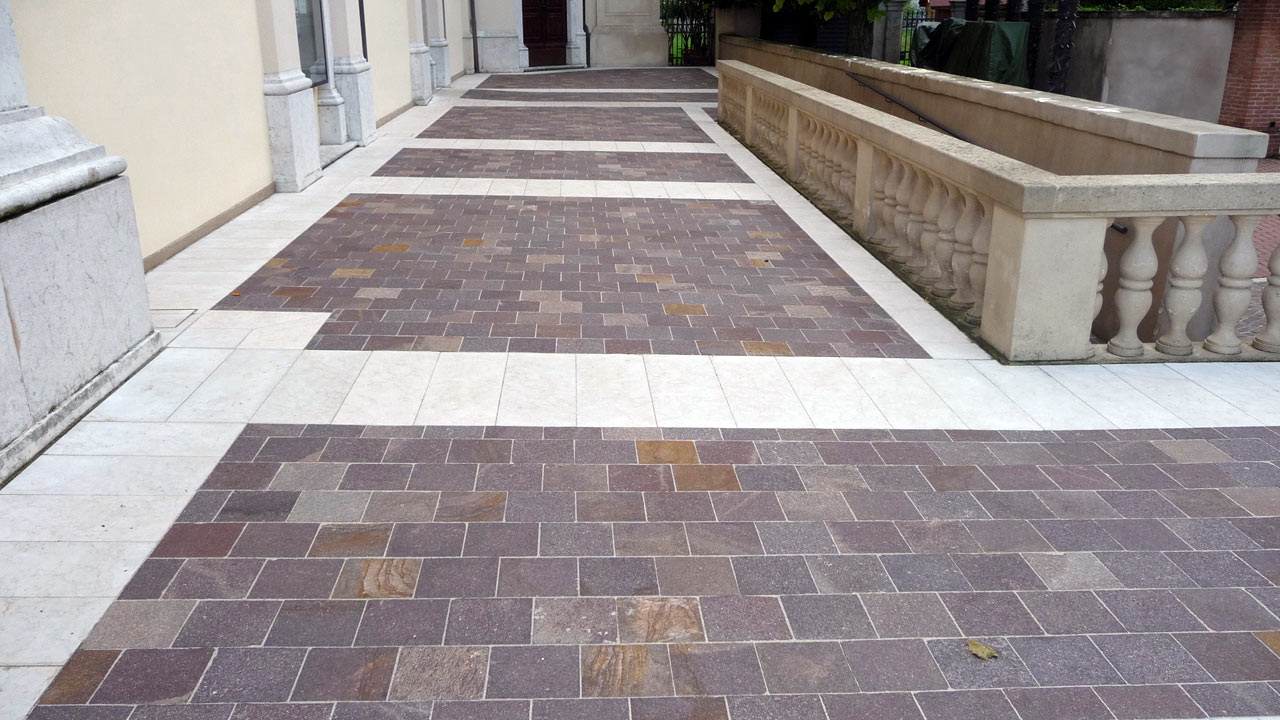

Natural plane tiles with sawn sides are divided according to thicknesses, which are non-uniform and vary from 2 to 5 cm for paving with occasional vehicular traffic, from 3 to 7 cm for light traffic surfaces, and from 5 to 8 cm for heavy traffic driveway paving.
| Trade name | Trentino porphyry |
| Color | Red, gray, red violet and rust or mixtures |
| Processing | Obtained from stratified material with natural plane, in varying thicknesses, through mechanical splitting or sawing of the sides. |
| DIMENSIONS WIDTH (mm) | THICKNESS (mm) | WEIGHT (KG/m2) | POSSIBLE USE | USEFUL THICKNESSES FOR LAYING (mm) |
|---|---|---|---|---|
| 100-150-200-250-300-350-400 | 10 to 30 | 60 to 70 | Pedestrian Pedestrian roofing membranes where there is a need for lightened weights (Cladding) | 60 to 70 |
| 100-150-200-250-300-350-400 | 20 to 50 or 30 to 60 | 100 to 110 | Pedestrian Private vehicular (Cladding) | 100 |
| 100-150-200-250-300-350-400 | 50 to 80 | 150 | Vehicular also heavy (with calculation of breaking loads for slabs as per UNI EN 1341) (Cladding) | 120 to 140 |
| Trade name | Trentino porphyry |
| Color | Red, gray, red violet and rust or mixtures |
| Processing | Obtained by block sawing into fixed thicknesses with subsequent surface treatment |
| TYPOLOGY | DIMENSIONS WIDTH (mm) | THICKNESS (mm) | WEIGHT (KG/m2) | POSSIBLE USE | USEFUL THICKNESSES FOR LAYING (mm) |
|---|---|---|---|---|---|

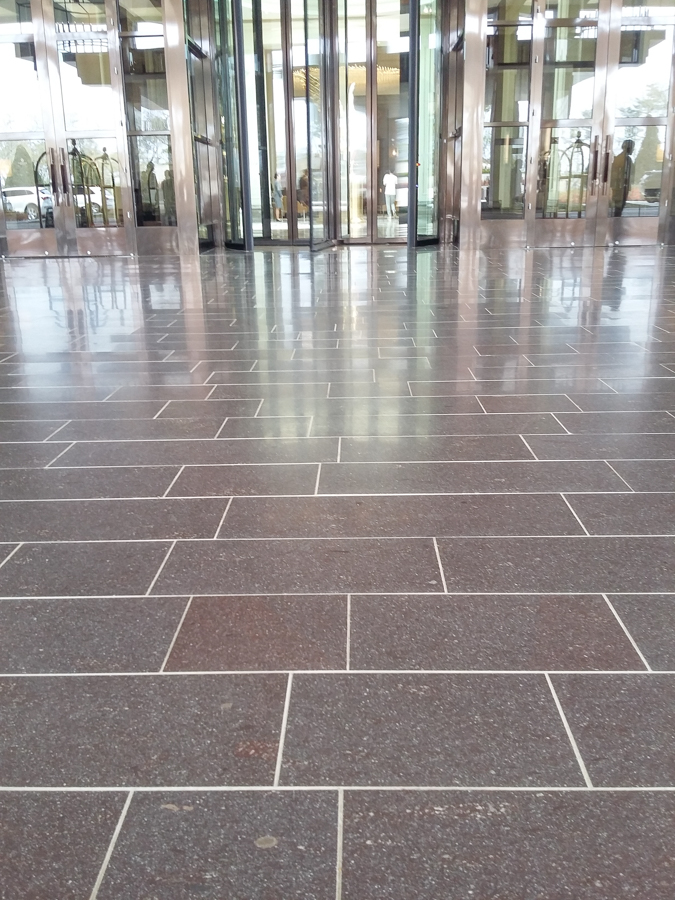

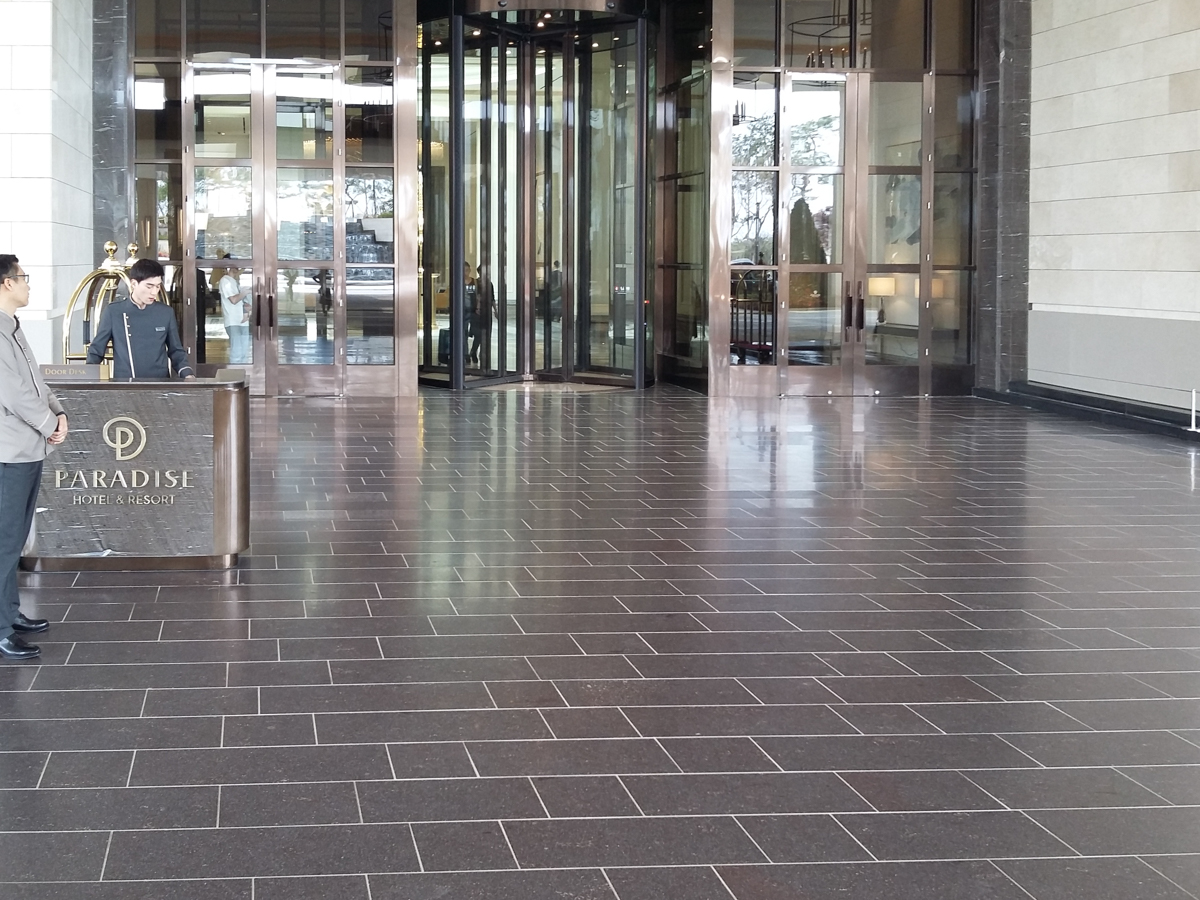

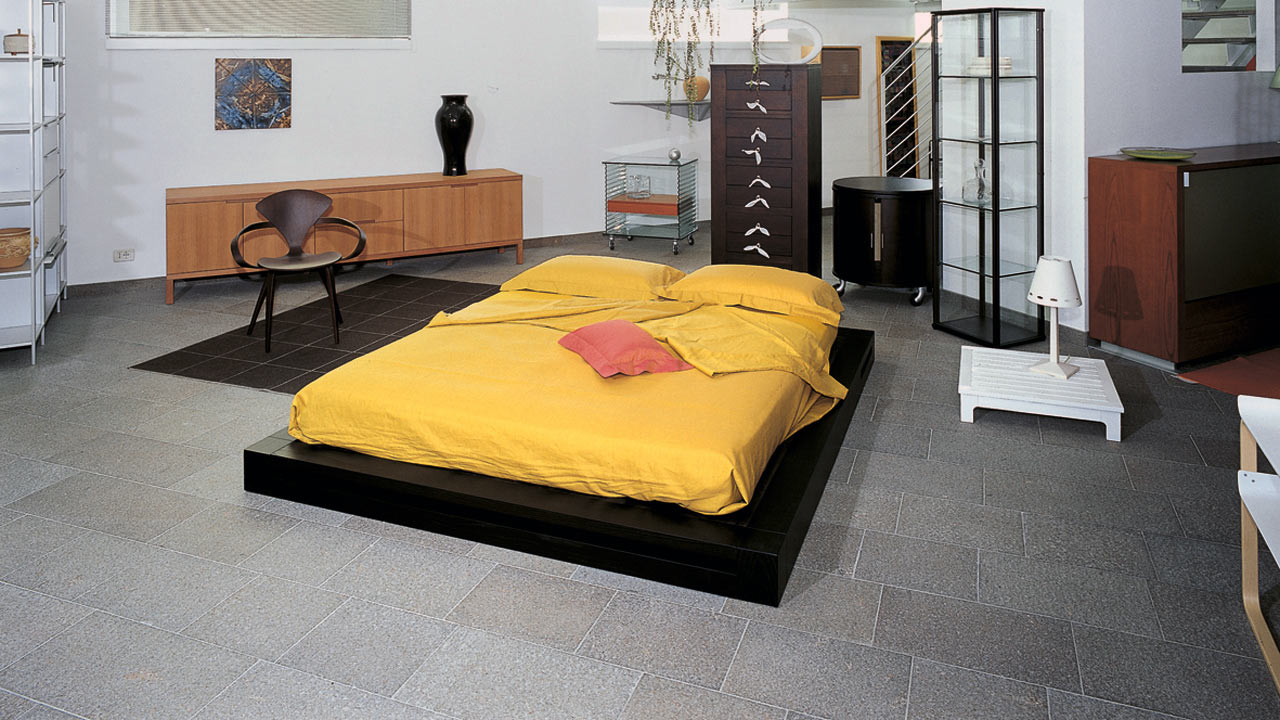

| Flamed, sandblasted,brushed | 100-150-200-250-300-305-400-450-500 | 20 | 50 | Pedestrian Interior Covered exterior (cladding) Other in modular form | 50 to 60 for mortar laying |
| 100-150-200-250-300-350-400-450-500 | 30 | 75 | |||
| Saw table, polished | 100-150-200-250-300-350-400-450-500 | 20 | 50 | Pedestrian Interior Covered exterior (cladding) Other in modular form | 50 to 60 for mortar laying |
| 100-150-200-250-300-350-400-450-500 | 20 | 75 |
Tell us about the installation context, the intended use, and the type of flooring: we’ll help you choose the most suitable size, thickness, and finish.
